Iscar

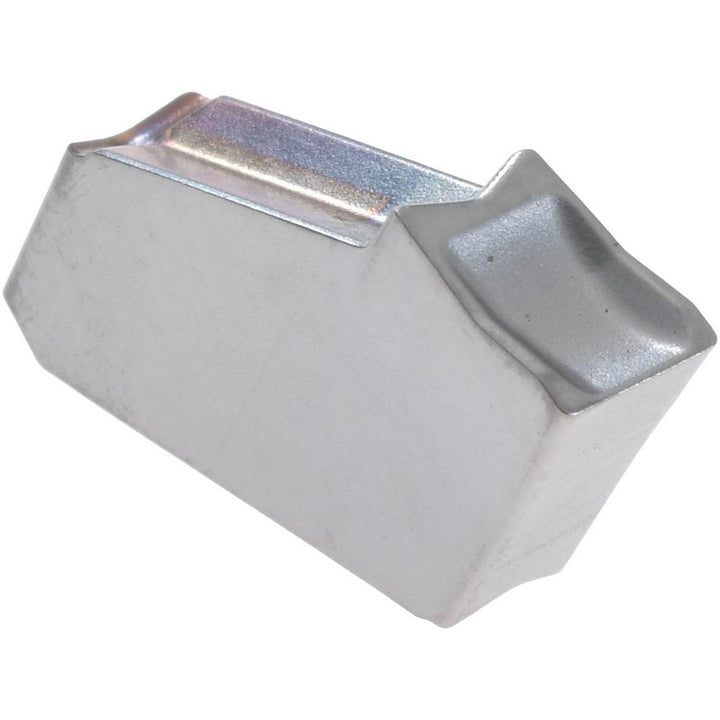

ISO 13399 Carbide Insert, Grade IC328, Coated - Iscar 6002573
MFR# 6002573ISO/ANSI# ISO 13399Series Self-Grip
$18.95List $24.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialCarbide
CoatingCoated
Description
The Iscar 6002573 is a ISO 13399 carbide indexable insert, grade IC328, Coated coated. Suited for superalloy.
Specifications
ChipbreakerC
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.1193
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert seat size3
Insert size code3
Insert styleGFN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Multi use toolYes
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endSingle
StandardsISO 13399
