Iscar

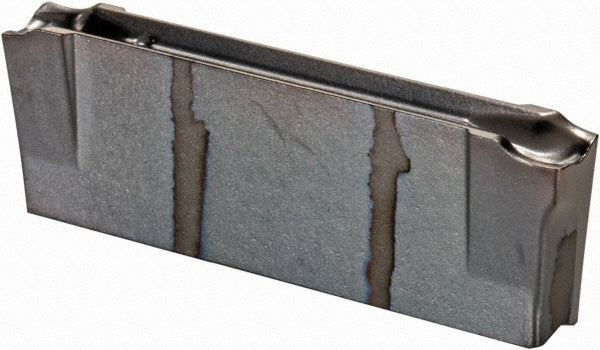

ISO 13399 Solid Carbide Insert, Grade IC354, TiN - Iscar 6002575
MFR# 6002575ISO/ANSI# ISO 13399Cat# DGR 3102J-15DSeries Cut-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 6002575 is a ISO 13399 solid carbide indexable insert, grade IC354, TiN coated. Suited for stainless steel, steel.
Specifications
ChipbreakerJ
Coating finishTiN
Coating processPVD
Corner radius0.0080
Cutting tool applicationParting
Cutting width0.1220
Full radiusNo
Insert handRight Hand
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size code3102
Insert styleDGR
Iso codeISO 13399
Lead angle15
Lead angle directionRight Hand
Manufacturers catalog numberDGR 3102J-15D
Manufacturer gradeIC354
Material gradeP40
Maximum depth of cut0.7090
Multi use toolNo
Overall length0.8270
Primary workpiece materialStainless Steel; Steel
Relief angle7.00
Single or double endDouble
StandardsISO 13399
