Iscar

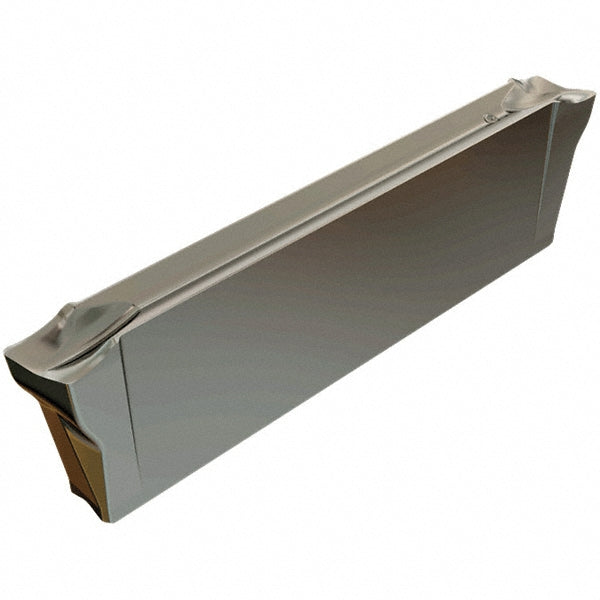

ISO 13399 Solid Carbide Insert, Grade IC328, Coated - Iscar 6002582
MFR# 6002582ISO/ANSI# ISO 13399Series Do-Grip
$33.81List $43.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6002582 is a ISO 13399 solid carbide indexable insert, grade IC328, Coated coated. Suited for superalloy.
Specifications
ChipbreakerJS
Coating finishCoated
Coating processPVD
Corner radius0.0008
Cutting tool applicationParting
Cutting width0.1220
Insert handLeft Hand
Insert materialSolid Carbide
Insert size code3100
Insert styleDGL
Iso codeISO 13399
Lead angle6
Lead angle directionLeft Hand
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Maximum depth of cut0.7087
Multi use toolNo
Overall length0.8110
Overall width0.1220
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endDouble
StandardsISO 13399
