Iscar

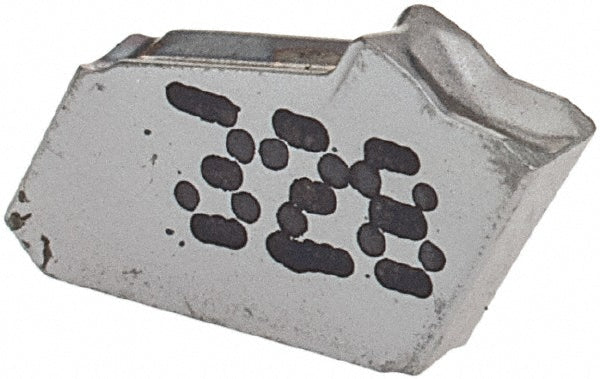

ISO 13399 Solid Carbide Insert, Grade IC328, Coated - Iscar 6002611
MFR# 6002611ISO/ANSI# ISO 13399Cat# GFN 1.6Series Self-Grip
$17.15List $22.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6002611 is a ISO 13399 solid carbide indexable insert, grade IC328, Coated coated. Suited for superalloy.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0063
Cutting tool applicationGrooving; Parting
Cutting width0.0630
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code1.6
Insert styleGFN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberGFN 1.6
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Multi use toolYes
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endSingle
StandardsISO 13399
