Iscar

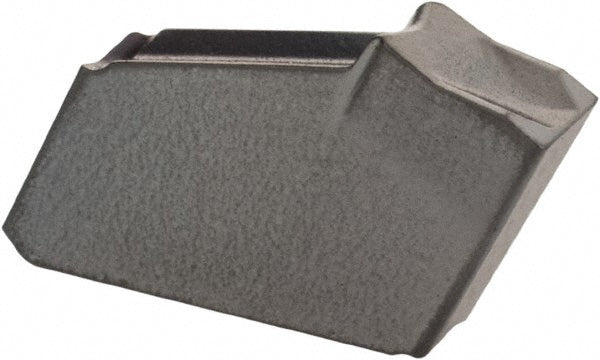

ISO 13399 Solid Carbide Insert, Grade IC354, Coated - Iscar 6002625
MFR# 6002625ISO/ANSI# ISO 13399Cat# GFR 2-4DSeries Self-Grip
$18.17List $23.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6002625 is a ISO 13399 solid carbide indexable insert, grade IC354, Coated coated. Suited for stainless steel, steel.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0063
Cutting tool applicationParting
Cutting width0.0866
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code2
Insert styleGFR
Iso codeISO 13399
Lead angle4
Lead angle directionRight Hand
Manufacturers catalog numberGFR 2-4D
Manufacturer gradeIC354
Material gradeC5; C6
Multi use toolNo
Primary workpiece materialStainless Steel; Steel
Relief angle7.00
Single or double endSingle
StandardsISO 13399
