Iscar

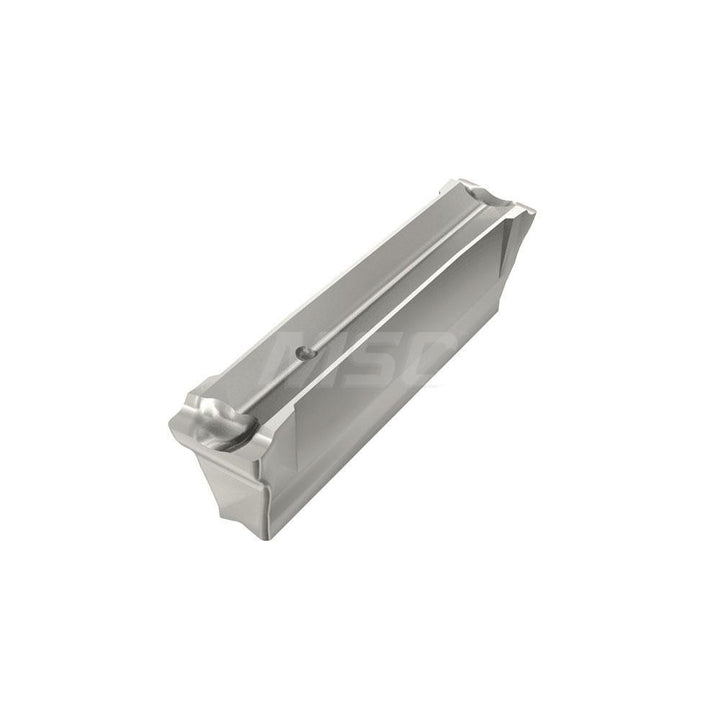

ISO 13399 Solid Carbide Insert, Grade IC308, Coated - Iscar 6002647
MFR# 6002647ISO/ANSI# ISO 13399Cat# DGN 3003UTSeries Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC308
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6002647 is a ISO 13399 solid carbide indexable insert, grade IC308, Coated coated. Suited for superalloy.
Specifications
ChipbreakerUT
Coating finishCoated
Coating processPVD
Corner radius0.0098
Cutting tool applicationGrooving; Parting
Cutting width0.1181
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code3003
Insert styleDGN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberDGN 3003UT
Manufacturer gradeIC308
Material gradeC6; C7
Maximum depth of cut0.7087
Multi use toolYes
Overall length0.8071
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endDouble
StandardsISO 13399
