Iscar

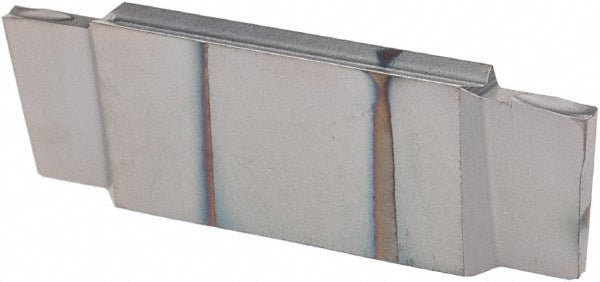

ISO 13399 Solid Carbide Insert, Grade IC328, Coated - Iscar 6002654
MFR# 6002654ISO/ANSI# ISO 13399Cat# DGR 1001J-8DSeries Do-Grip
$37.51List $47.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6002654 is a ISO 13399 solid carbide indexable insert, grade IC328, Coated coated. Suited for superalloy.
Specifications
ChipbreakerJ
Coating finishCoated
Coating processPVD
Corner radius0.0028
Cutting tool applicationParting
Cutting width0.0394
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code1001
Insert styleDGR
Iso codeISO 13399
Lead angle8
Lead angle directionRight Hand
Manufacturers catalog numberDGR 1001J-8D
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Maximum depth of cut0.1181
Multi use toolNo
Overall length0.8268
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endDouble
StandardsISO 13399
