Iscar

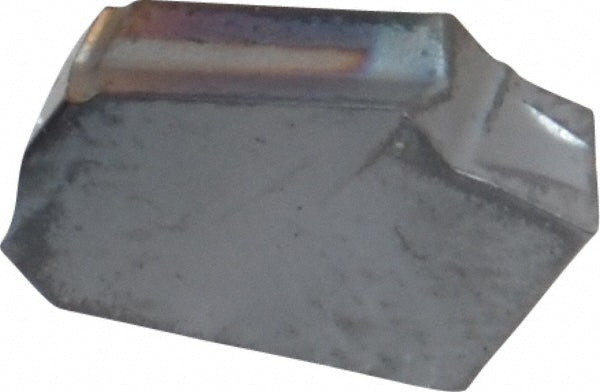

Solid Carbide Insert, Grade IC354, Coated - Iscar 6002714
MFR# 6002714Series Self-Grip
$20.43List $26.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6002714 is a solid carbide indexable insert, grade IC354, Coated coated.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0094
Cutting tool applicationGrooving; Parting
Cutting width0.1614
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size4
Insert size code4
Insert styleGTR
Lead angle15
Lead angle directionRight Hand
Manufacturer gradeIC354
Material gradeC5; C6
Multi use toolNo
Relief angle7.00
Single or double endSingle
