Iscar

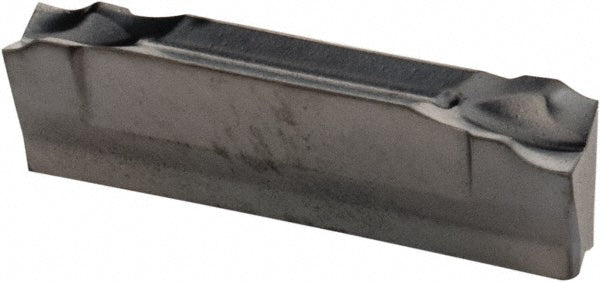

ISO 13399 Solid Carbide Insert, Grade IC328, Coated - Iscar 6002748
MFR# 6002748ISO/ANSI# ISO 13399Series Do-Grip
$33.81List $43.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6002748 is a ISO 13399 solid carbide indexable insert, grade IC328, Coated coated. Suited for superalloy.
Specifications
ChipbreakerJS
Coating finishCoated
Coating processPVD
Corner radius0.0008
Cutting tool applicationParting
Cutting width0.1181
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code3000
Insert styleHGR
Iso codeISO 13399
Lead angle15
Lead angle directionRight Hand
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Multi use toolNo
Overall length0.5984
Primary workpiece materialSuperalloy
Single or double endDouble
StandardsISO 13399
