Iscar

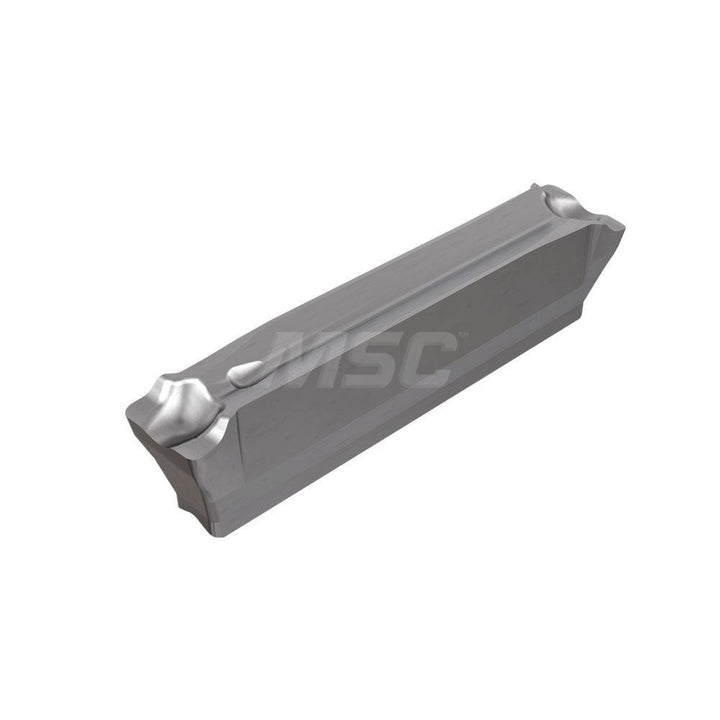

ISO 13399 Solid Carbide Insert, Grade IC354, Coated - Iscar 6002753
MFR# 6002753ISO/ANSI# ISO 13399Series Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC354
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6002753 is a ISO 13399 solid carbide indexable insert, grade IC354, Coated coated. Suited for stainless steel, steel.
Specifications
ChipbreakerUT
Coating finishCoated
Coating processPVD
Corner radius0.0118
Cutting tool applicationGrooving; Parting
Cutting width0.1181
Insert handNeutral
Insert materialSolid Carbide
Insert size code3003
Insert styleHGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC354
Material gradeC5; C6
Multi use toolYes
Overall length0.6220
Overall width0.1181
Primary workpiece materialStainless Steel; Steel
Single or double endDouble
StandardsISO 13399
