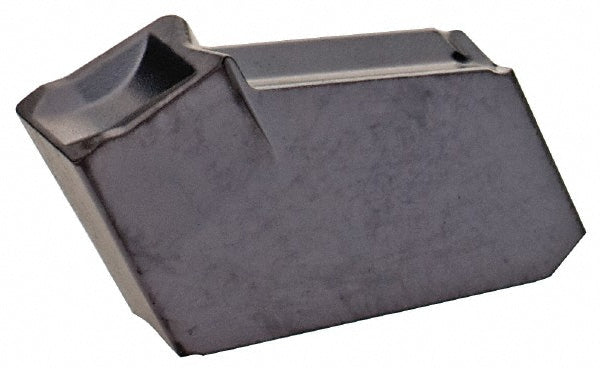

GSFN 3.2 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6002842

Iscar

GSFN 3.2 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6002842

MFR# 6002842ISO/ANSI# GSFN 3.2Cat# GSFN 3.2 IC908Series Self Grip

$18.95List $24.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeIC908
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 6002842 is a GSFN 3.2 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeGSFN 3.2 IC908
Coating finishTiAlN
Coating processPVD
Corner radius0.0087
Cutter series compatibilitySGSF
Cutting edge effective length0.1260
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.1260
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert shapeRectangle
Insert size3.2
Insert size code3.2
Insert styleGSFN
Iso codeGSFN 3.2
Manufacturers catalog numberGSFN 3.2 IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Multi use toolYes
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Width0.1260
