Iscar
ISO 13399 Solid Carbide Insert, Grade IC328, Coated - Iscar 6002852
MFR# 6002852ISO/ANSI# ISO 13399Series Self-Grip
$18.17List $23.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingCoated
Description

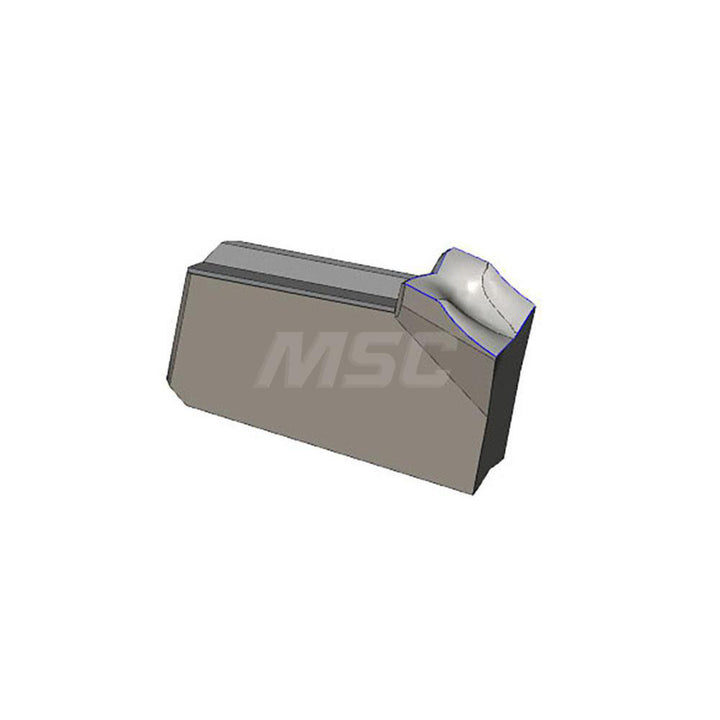

The Iscar 6002852 is a ISO 13399 solid carbide indexable insert, grade IC328, Coated coated. Suited for superalloy.
Specifications
ChipbreakerJ
Coating finishCoated
Coating processPVD
Corner radius0.0063
Cutting tool applicationParting
Cutting width0.0787
Insert handLeft Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code2
Insert styleGFL
Iso codeISO 13399
Lead angle6
Lead angle directionLeft Hand
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Multi use toolNo
Overall width0.0787
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endSingle
StandardsISO 13399
