Iscar

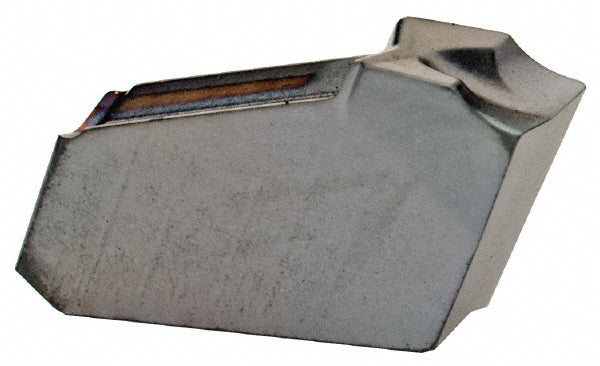

ISO 13399 Solid Carbide Insert, Grade IC328, Coated - Iscar 6002853
MFR# 6002853ISO/ANSI# ISO 13399Cat# GFL 3J-6DSeries Self-Grip
$18.95List $24.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6002853 is a ISO 13399 solid carbide indexable insert, grade IC328, Coated coated. Suited for superalloy.
Specifications
ChipbreakerJ
Coating finishCoated
Coating processPVD
Corner radius0.0098
Cutting tool applicationParting
Cutting width0.1181
Insert handLeft Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size3
Insert size code3
Insert styleGFL
Iso codeISO 13399
Lead angle6
Lead angle directionLeft Hand
Manufacturers catalog numberGFL 3J-6D
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Multi use toolNo
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endSingle
StandardsISO 13399
