Iscar

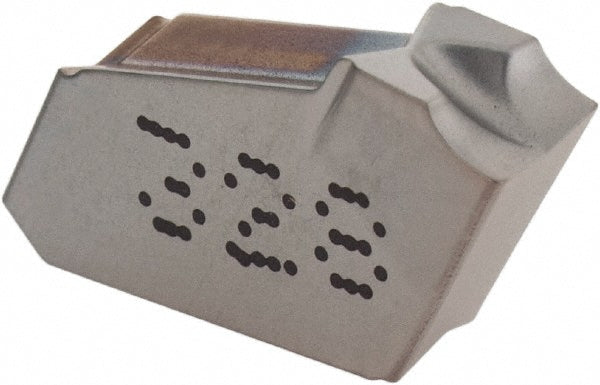

ISO 13399 Solid Carbide Insert, Grade IC328, Coated - Iscar 6002865
MFR# 6002865ISO/ANSI# ISO 13399Cat# GFR 4J-6DSeries Self-Grip
$20.43List $26.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6002865 is a ISO 13399 solid carbide indexable insert, grade IC328, Coated coated. Suited for superalloy.
Specifications
ChipbreakerJ
Coating finishCoated
Coating processPVD
Corner radius0.0098
Cutting tool applicationParting
Cutting width0.1575
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size4
Insert size code4
Insert styleGFR
Iso codeISO 13399
Lead angle6
Lead angle directionRight Hand
Manufacturers catalog numberGFR 4J-6D
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Multi use toolNo
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endSingle
StandardsISO 13399
