Iscar

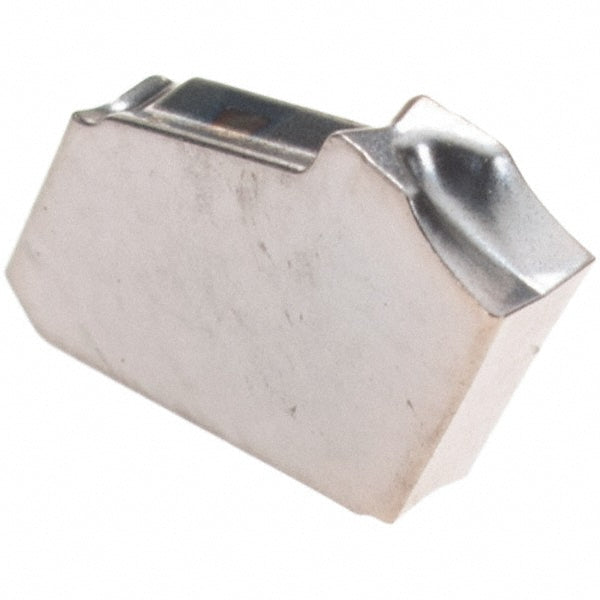

ISO 13399 Carbide Insert, Grade IC328, TiN/TiCN/TiN - Iscar 6002885
MFR# 6002885ISO/ANSI# ISO 13399Cat# GFR 1.6J-6DSeries Self-Grip
$17.15List $22.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialCarbide
CoatingTiN/TiCN/TiN
Description
The Iscar 6002885 is a ISO 13399 carbide indexable insert, grade IC328, TiN/TiCN/TiN coated. Suited for superalloy.
Specifications
ChipbreakerJ
Coating finishTiN/TiCN/TiN
Coating processPVD
Corner radius0.0060
Cutting tool applicationParting
Cutting width0.0630
Full radiusNo
Insert handRight Hand
Insert holding methodSelf Grip
Insert materialCarbide
Insert size code1.6
Insert styleGFR
Iso codeISO 13399
Lead angle6
Lead angle directionRight Hand
Manufacturers catalog numberGFR 1.6J-6D
Manufacturer gradeIC328
Material gradeP45-K40
Multi use toolNo
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endSingle
StandardsISO 13399
