Iscar

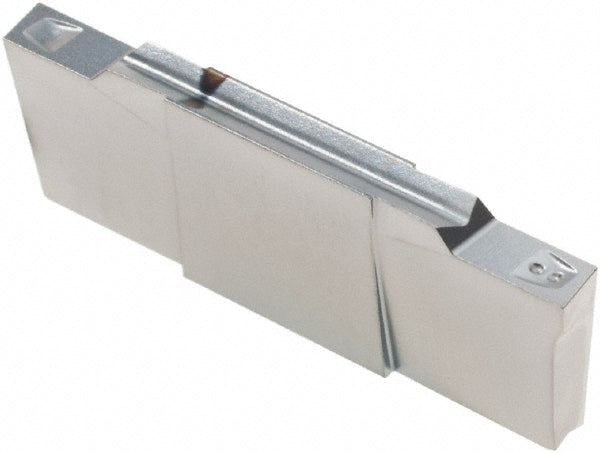

ISO 13399 Solid Carbide Insert, Grade IC328, Coated - Iscar 6002931
MFR# 6002931ISO/ANSI# ISO 13399Series Do-Grip
$34.57List $43.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6002931 is a ISO 13399 solid carbide indexable insert, grade IC328, Coated coated. Suited for superalloy.
Specifications
ChipbreakerWP
Coating finishCoated
Coating processPVD
Corner radius0.0020
Cutting tool applicationParting
Cutting width0.0748
Insert handRight Hand
Insert materialSolid Carbide
Insert size code1900
Insert styleDGR
Iso codeISO 13399
Lead angle12
Lead angle directionRight Hand
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Maximum depth of cut0.2362
Multi use toolNo
Overall length0.7756
Overall width0.0748
Primary workpiece materialSuperalloy
Single or double endDouble
StandardsISO 13399
