Iscar

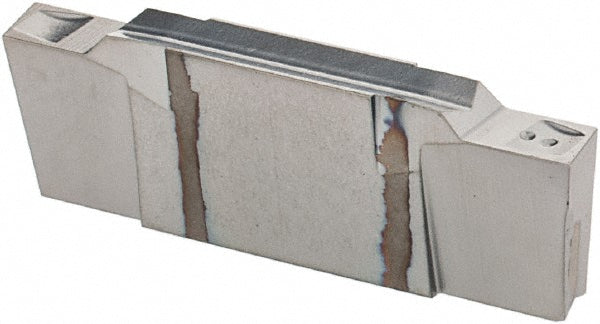

ISO 13399 Solid Carbide Insert, Grade IC328, Coated - Iscar 6002933
MFR# 6002933ISO/ANSI# ISO 13399Cat# DGR 2400WP-12DSeries Do-Grip
$33.97List $43.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6002933 is a ISO 13399 solid carbide indexable insert, grade IC328, Coated coated. Suited for superalloy.
Specifications
ChipbreakerWP
Coating finishCoated
Coating processPVD
Corner radius0.0020
Cutting tool applicationParting
Cutting width0.0941
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code2400
Insert styleDGR
Iso codeISO 13399
Lead angle12
Lead angle directionRight Hand
Manufacturers catalog numberDGR 2400WP-12D
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Maximum depth of cut0.2362
Multi use toolNo
Overall length0.8031
Primary workpiece materialSuperalloy
Single or double endDouble
StandardsISO 13399
