Iscar

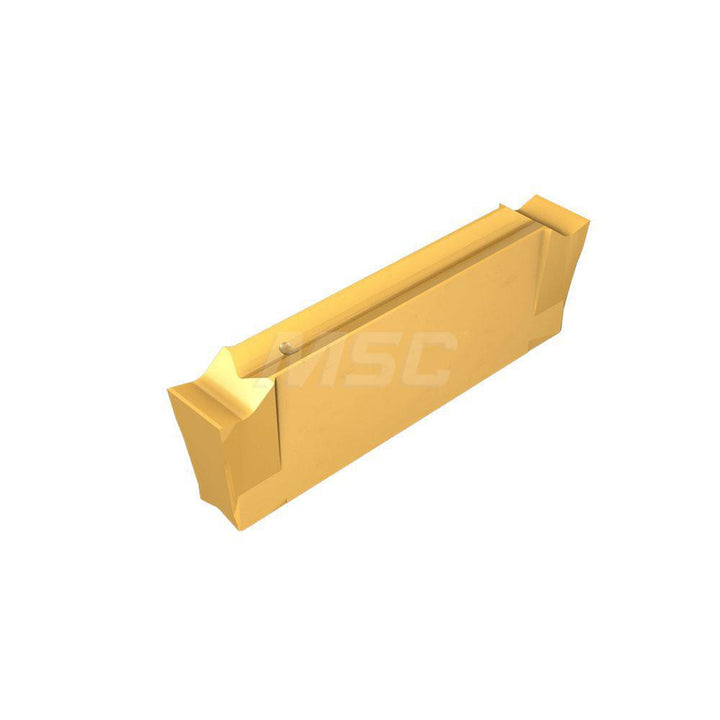

ISO 13399 Solid Carbide Insert, Grade IC508, TiCN - Iscar 6002938
MFR# 6002938ISO/ANSI# ISO 13399Series Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC508
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6002938 is a ISO 13399 solid carbide indexable insert, grade IC508, TiCN coated. Suited for universal.
Specifications
ChipbreakerP
Coating finishTiCN
Coating processPVD
Corner radius0.0020
Cutting tool applicationGrooving; Parting
Cutting width0.0590
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code1500
Insert styleDGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC508
Material gradeC2; C3; C5; C6; C7
Maximum depth of cut0.7087
Multi use toolYes
Overall length0.7874
Primary workpiece materialUniversal
Relief angle7.00
Single or double endDouble
StandardsISO 13399
Stocking categoryD
