Iscar

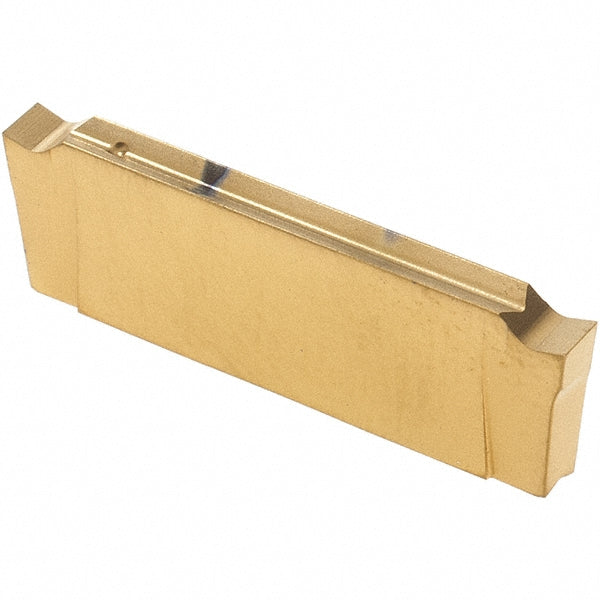

ISO 13399 Solid Carbide Insert, Grade IC508, TiCN - Iscar 6002943
MFR# 6002943ISO/ANSI# ISO 13399Series Do-Grip
$34.41List $43.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC508
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6002943 is a ISO 13399 solid carbide indexable insert, grade IC508, TiCN coated. Suited for universal.
Specifications
ChipbreakerP
Coating finishTiCN
Coating processPVD
Cutting tool applicationParting
Insert handRight Hand
Insert materialSolid Carbide
Insert size code2000
Insert styleDGR
Iso codeISO 13399
Lead angle6
Lead angle directionRight Hand
Manufacturer gradeIC508
Multi use toolNo
Overall length0.8110
Primary workpiece materialUniversal
Relief angle7.00
StandardsISO 13399
