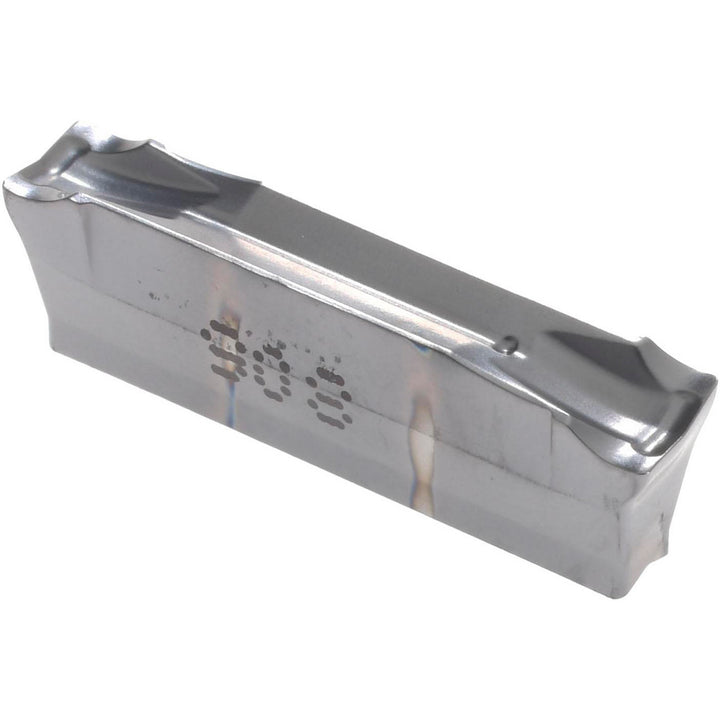

ISO 13399 Carbide Insert, Grade IC908, Coated - Iscar 6002953
MFR# 6002953ISO/ANSI# ISO 13399Series Do-Grip
$34.67List $44.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialCarbide
CoatingCoated
Description
The Iscar 6002953 is a ISO 13399 carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerJ
Coating finishCoated
Coating processPVD
Corner radius0.0118
Cutting tool applicationParting
Cutting width0.1575
Insert handRight Hand
Insert materialCarbide
Insert size code4003
Insert styleDGR
Iso codeISO 13399
Lead angle4
Lead angle directionRight Hand
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Multi use toolNo
Overall length0.7480
Overall width0.1575
Primary workpiece materialUniversal
Relief angle7.00
Single or double endDouble
StandardsISO 13399
