Iscar

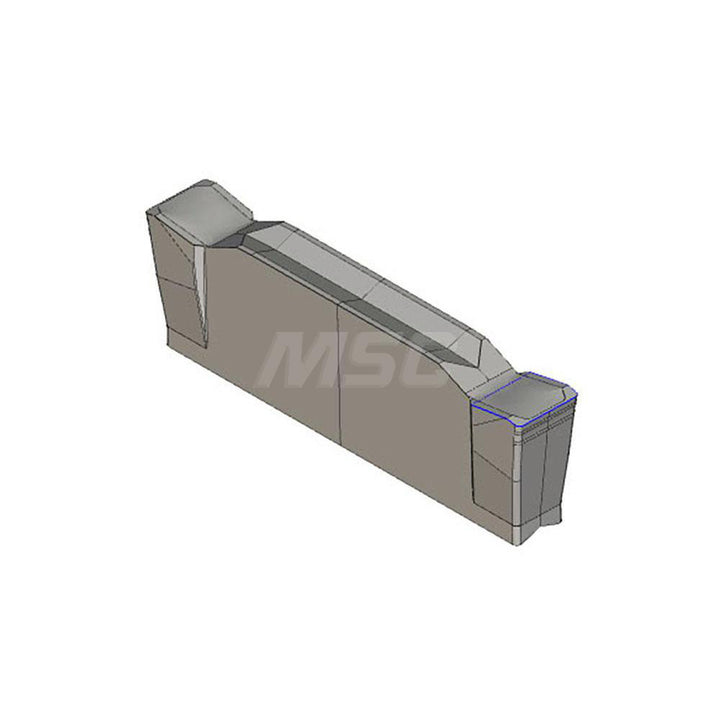

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 6002962
MFR# 6002962ISO/ANSI# ISO 13399Cat# DGN 3102CSeries Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6002962 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerC
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.1220
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code3102
Insert styleDGN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberDGN 3102C
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.7087
Multi use toolYes
Overall length0.7913
Primary workpiece materialUniversal
Relief angle7.00
Single or double endDouble
StandardsISO 13399
