Iscar

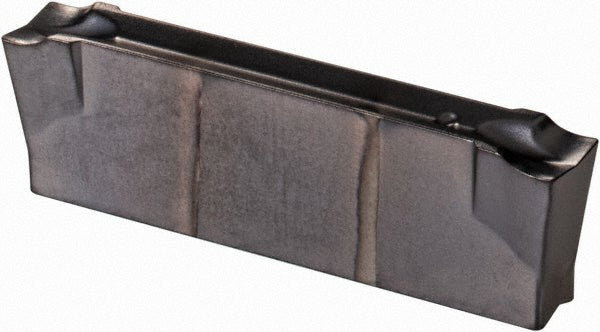

ISO 13399 Solid Carbide Insert, Grade IC908, TiN - Iscar 6002963
MFR# 6002963ISO/ANSI# ISO 13399Cat# DGN 3102JSeries Cut-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 6002963 is a ISO 13399 solid carbide indexable insert, grade IC908, TiN coated. Suited for universal.
Specifications
ChipbreakerJ
Coating finishTiN
Coating processPVD
Corner radius0.0080
Cutting tool applicationGrooving; Parting
Cutting width0.1220
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size code3102
Insert styleDGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberDGN 3102J
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.7090
Multi use toolYes
Overall length0.7910
Primary workpiece materialUniversal
Relief angle7.00
Single or double endDouble
StandardsISO 13399
