Iscar

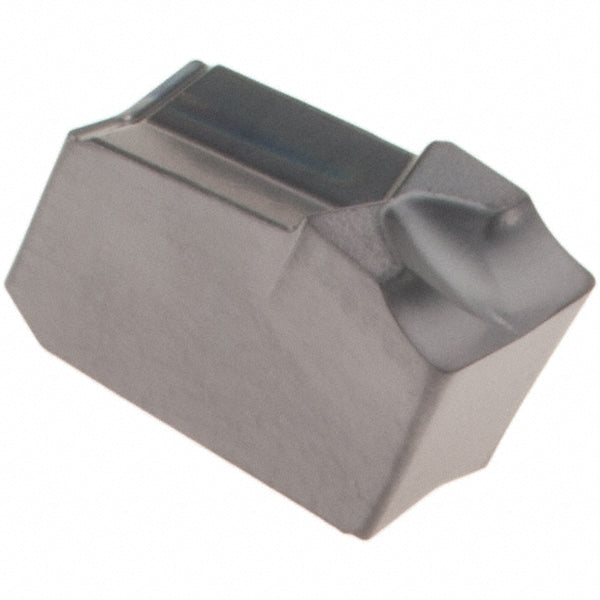

GSFN 4J Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6003006
MFR# 6003006ISO/ANSI# GSFN 4JCat# GSFN 4J IC908Series Self Grip
$20.79List $26.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6003006 is a GSFN 4J solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeGSFN 4J IC908
Chip breakerJ
Coating finishTiAlN
Coating processPVD
Corner radius0.0118
Cutter series compatibilitySGSF
Cutting edge effective length0.1580
Cutting edge styleSharp
Included angle degree90
Inscribed circle0.1583
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert shapeRectangle
Insert size4
Insert size code4
Insert styleGSFN
Iso codeGSFN 4J
Manufacturers catalog numberGSFN 4J IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Multi use toolYes
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle7
Single or double sided insertSingle
StandardsANSI; ISO 13399
Width0.1583
