Iscar

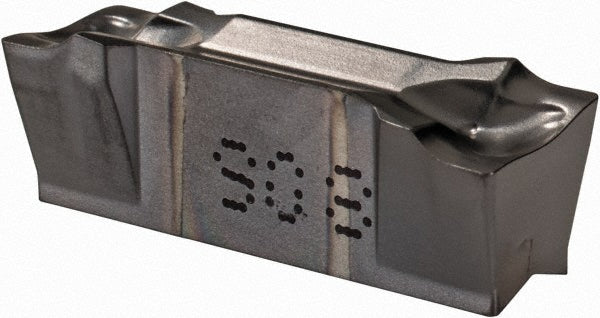

ISO 13399 Solid Carbide Insert, Grade IC908, TiN - Iscar 6003033
MFR# 6003033ISO/ANSI# ISO 13399Cat# DGN 6303JSeries Do-Grip
$40.84List $52.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 6003033 is a ISO 13399 solid carbide indexable insert, grade IC908, TiN coated. Suited for universal.
Specifications
ChipbreakerJ
Coating finishTiN
Coating processPVD
Corner radius0.0140
Cutting tool applicationGrooving; Parting
Cutting width0.2500
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size code6303
Insert styleDGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberDGN 6303J
Manufacturer gradeIC908
Material gradeSubmicron
Multi use toolYes
Overall length0.7520
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
