Iscar

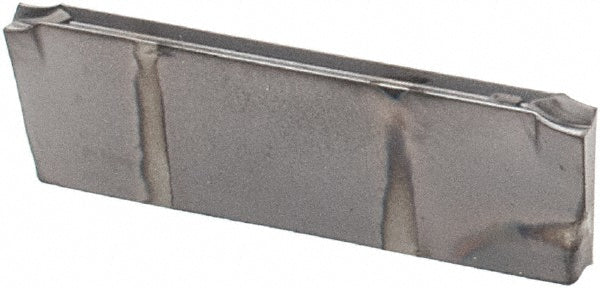

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 6003035
MFR# 6003035ISO/ANSI# ISO 13399Cat# DGR 1400JS-15DSeries Do-Grip
$33.81List $43.30
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6003035 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerJS
Coating finishCoated
Coating processPVD
Corner radius0.0008
Cutting tool applicationParting
Cutting width0.0551
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code1400
Insert styleDGR
Iso codeISO 13399
Lead angle15
Lead angle directionRight Hand
Manufacturers catalog numberDGR 1400JS-15D
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.5906
Multi use toolNo
Overall length0.6063
Primary workpiece materialUniversal
Relief angle7.00
Single or double endDouble
StandardsISO 13399
