Iscar

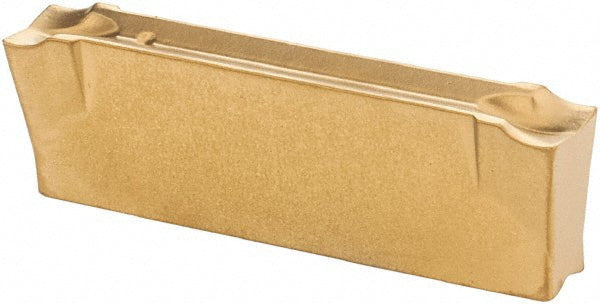

ISO 13399 Solid Carbide Insert, Grade IC1028, TiAlN - Iscar 6003039
MFR# 6003039ISO/ANSI# ISO 13399Cat# DGN 3102JSeries Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1028
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6003039 is a ISO 13399 solid carbide indexable insert, grade IC1028, TiAlN coated. Suited for stainless steel, steel.
Specifications
ChipbreakerJ
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.1220
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code3102
Insert styleDGN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberDGN 3102J
Manufacturer gradeIC1028
Material gradeC5; C6
Maximum depth of cut0.7087
Multi use toolYes
Overall length0.7913
Primary workpiece materialStainless Steel; Steel
Relief angle7.00
Single or double endDouble
StandardsISO 13399
