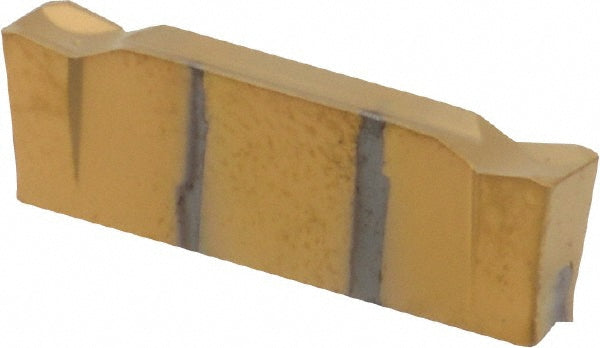

ISO 13399 Solid Carbide Insert, Grade IC1028, TiAlN - Iscar 6003040
MFR# 6003040ISO/ANSI# ISO 13399Series Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1028
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6003040 is a ISO 13399 solid carbide indexable insert, grade IC1028, TiAlN coated. Suited for stainless steel, steel.
Specifications
ChipbreakerC
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.1220
Insert handNeutral
Insert materialSolid Carbide
Insert size code3102
Insert styleDGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC1028
Material gradeC5; C6
Maximum depth of cut0.7087
Multi use toolYes
Overall length0.7913
Overall width0.1220
Primary workpiece materialStainless Steel; Steel
Single or double endDouble
StandardsISO 13399
