Iscar

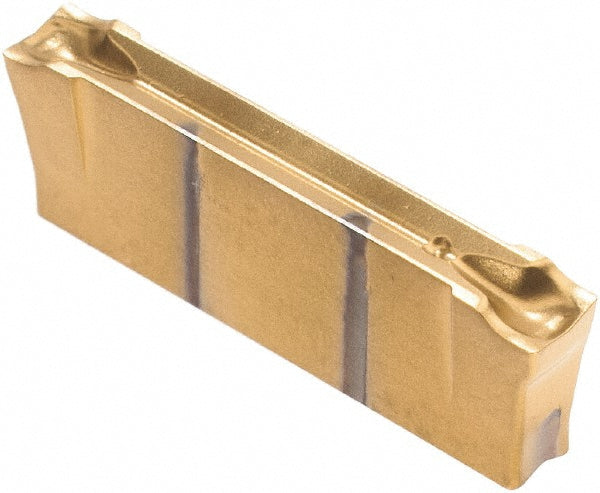

ISO 13399 Solid Carbide Insert, Grade IC1028, TiAlN/TiN - Iscar 6003043
MFR# 6003043ISO/ANSI# ISO 13399Series Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1028
MaterialSolid Carbide
CoatingTiAlN/TiN
Description
The Iscar 6003043 is a ISO 13399 solid carbide indexable insert, grade IC1028, TiAlN/TiN coated. Suited for stainless steel, steel.
Specifications
ChipbreakerJ
Coating finishTiAlN/TiN
Coating processPVD
Corner radius0.0079
Cutting tool applicationParting
Cutting width0.1220
Insert handRight Hand
Insert materialSolid Carbide
Insert size code3102
Insert styleDGR
Iso codeISO 13399
Lead angle6
Lead angle directionRight Hand
Manufacturer gradeIC1028
Material gradeC5; C6
Maximum depth of cut0.7087
Multi use toolNo
Overall length0.8268
Overall width0.1220
Primary workpiece materialStainless Steel; Steel
Relief angle7.00
Single or double endDouble
StandardsISO 13399
