Iscar

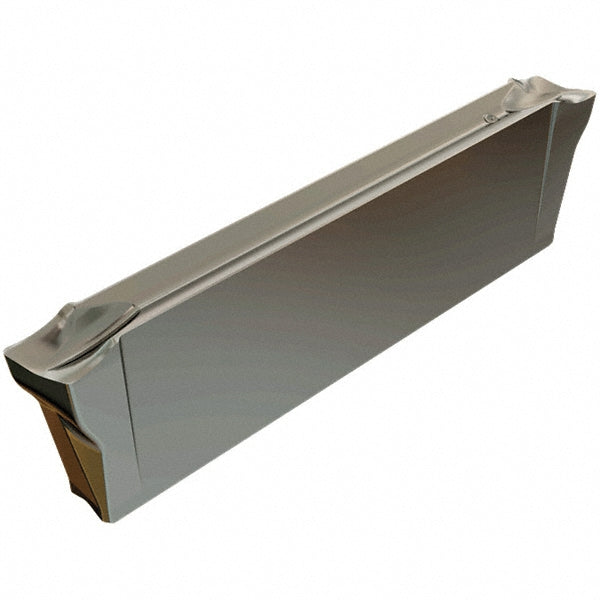

ISO 13399 Solid Carbide Insert, Grade IC1028, TiAlN - Iscar 6003053
MFR# 6003053ISO/ANSI# ISO 13399Series Do-Grip
$34.41List $43.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1028
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6003053 is a ISO 13399 solid carbide indexable insert, grade IC1028, TiAlN coated. Suited for stainless steel, steel.
Specifications
ChipbreakerJS
Coating finishTiAlN
Coating processPVD
Corner radius0.0008
Cutting tool applicationParting
Cutting width0.1220
Insert handRight Hand
Insert materialSolid Carbide
Insert size code3100
Insert styleDGR
Iso codeISO 13399
Lead angle15
Lead angle directionRight Hand
Manufacturer gradeIC1028
Material gradeC5; C6
Maximum depth of cut0.7087
Multi use toolNo
Overall length0.8110
Overall width0.1220
Primary workpiece materialStainless Steel; Steel
Relief angle7.00
Single or double endDouble
StandardsISO 13399
