Iscar

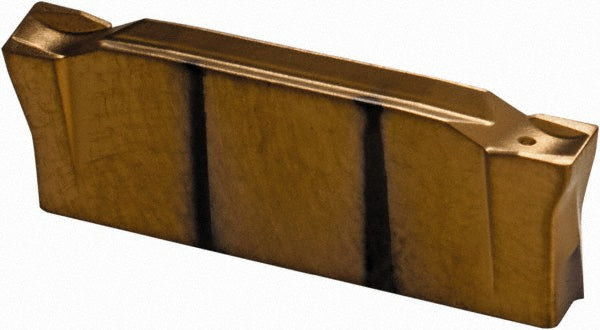

ISO 13399 Solid Carbide Insert, Grade IC1028, TiN - Iscar 6003058
MFR# 6003058ISO/ANSI# ISO 13399Cat# DGR 3102C-15DSeries Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1028
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 6003058 is a ISO 13399 solid carbide indexable insert, grade IC1028, TiN coated. Suited for stainless steel, steel.
Specifications
ChipbreakerC
Coating finishTiN
Coating processPVD
Corner radius0.0080
Cutting tool applicationParting
Cutting width0.1220
Full radiusNo
Insert handRight Hand
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size code3102
Insert styleDGR
Iso codeISO 13399
Lead angle15
Lead angle directionRight Hand
Manufacturers catalog numberDGR 3102C-15D
Manufacturer gradeIC1028
Material gradeC5; C6
Maximum depth of cut0.7090
Multi use toolNo
Overall length0.8230
Primary workpiece materialStainless Steel; Steel
Single or double endDouble
StandardsISO 13399
