Iscar

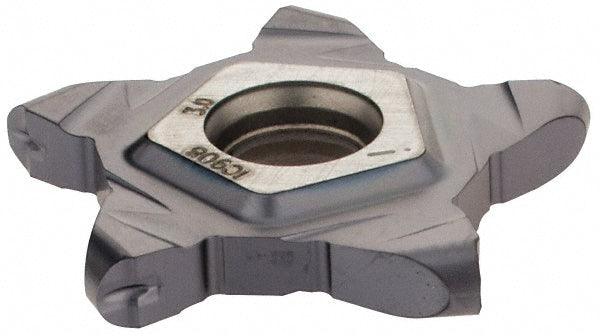

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6003091
MFR# 6003091ISO/ANSI# ISO 13399Cat# PENTA 24N300J150Series PENTA
$67.91List $87.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6003091 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerJ
Coating finishTiAlN
Coating processPVD
Corner radius0.0590
Cutting width0.1181
Full radiusYes
Insert handNeutral
Insert materialSolid Carbide
Insert size24N300J150
Insert size code24N300J150
Insert stylePENTA
Iso codeISO 13399
Lead angle0
Manufacturers catalog numberPENTA 24N300J150
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.2559
Maximum depth of cut range0.2000 to 0.3000
Multi use toolNo
Primary workpiece materialUniversal
StandardsISO 13399
