Iscar

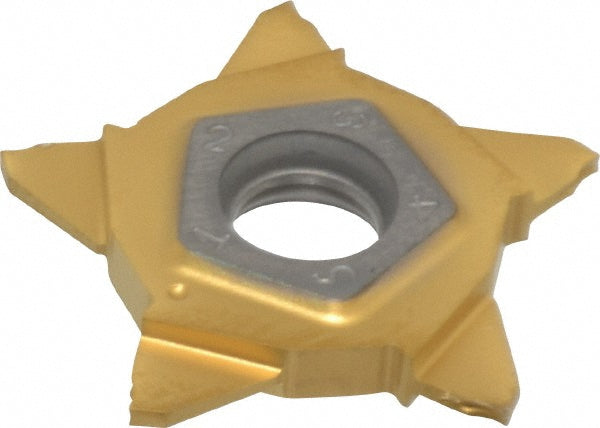

ISO 13399 Solid Carbide Insert, Grade IC1008, TiAlN - Iscar 6003093
MFR# 6003093ISO/ANSI# ISO 13399Cat# PENTA 24N100J006Series PENTA
$54.66List $70.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1008
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6003093 is a ISO 13399 solid carbide indexable insert, grade IC1008, TiAlN coated. Suited for universal.
Specifications
Chip breakerJ
Coating finishTiAlN
Coating processPVD
Corner radius0.0024
Cutting width0.0394
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert size24N100J006
Insert size code24N100J006
Insert stylePENTA
Iso codeISO 13399
Lead angle0
Manufacturers catalog numberPENTA 24N100J006
Manufacturer gradeIC1008
Material gradeC1; C2; C3; C5; C6
Maximum depth of cut0.1378
Maximum depth of cut range0.1000 to 0.1500
Multi use toolNo
Primary workpiece materialUniversal
StandardsISO 13399
