Iscar

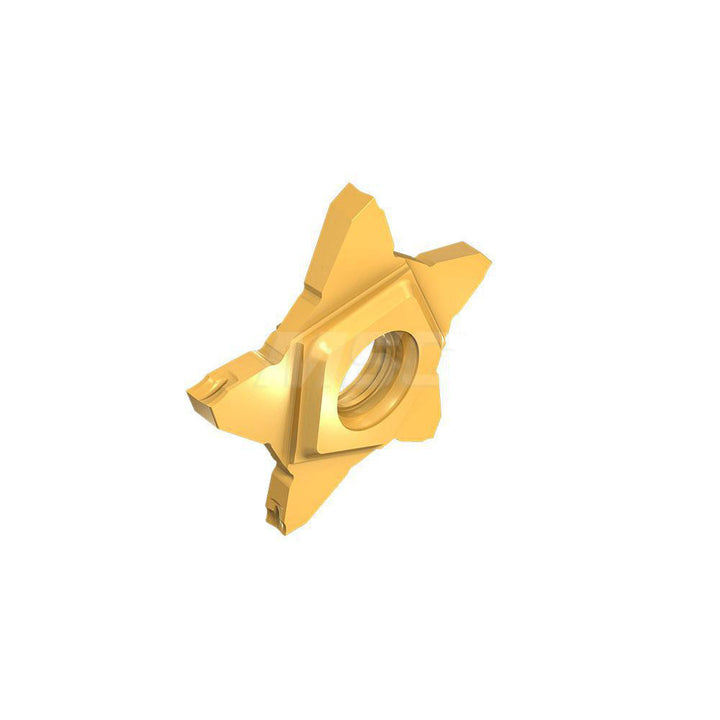

ISO 13399 Solid Carbide Insert, Grade IC1008, TiAlN - Iscar 6003095
MFR# 6003095ISO/ANSI# ISO 13399Cat# PENTA 24R100J15DSeries PENTA
$55.63List $70.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1008
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6003095 is a ISO 13399 solid carbide indexable insert, grade IC1008, TiAlN coated. Suited for universal.
Specifications
Chip breakerJ
Coating finishTiAlN
Coating processPVD
Corner radius0.0024
Cutting width0.0394
Full radiusNo
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size24R100J15D
Insert size code24R100J15D
Insert stylePENTA
Iso codeISO 13399
Lead angle15
Manufacturers catalog numberPENTA 24R100J15D
Manufacturer gradeIC1008
Material gradeC1; C2; C3; C5; C6
Maximum depth of cut0.1378
Maximum depth of cut range0.1000 to 0.1500
Msc manufacturer numberPENTA 24R/L100J15D
Multi use toolNo
Primary workpiece materialUniversal
StandardsISO 13399
