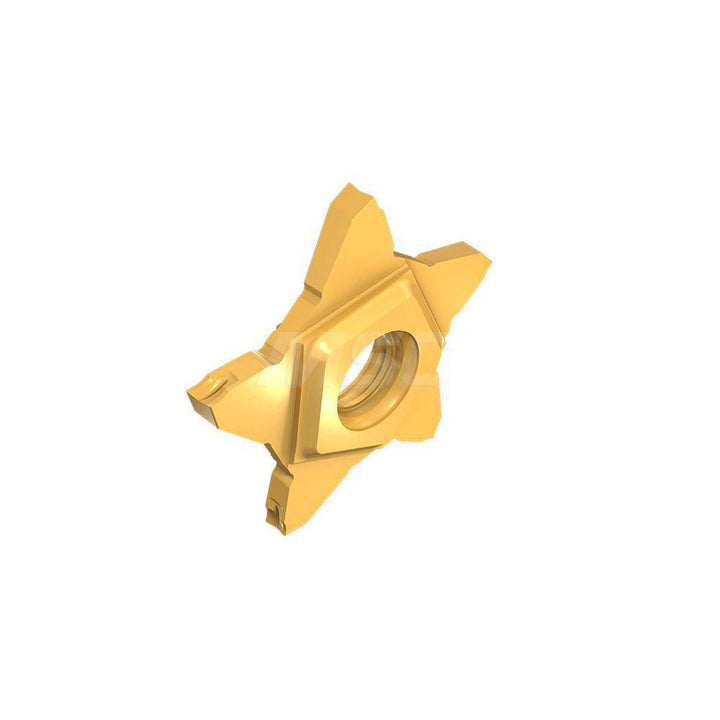

ISO 13399 Solid Carbide Insert, Grade IC1008, TiAlN - Iscar 6003097
MFR# 6003097ISO/ANSI# ISO 13399Cat# PENTA 24R150J06DSeries PENTA
$54.66List $70.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1008
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6003097 is a ISO 13399 solid carbide indexable insert, grade IC1008, TiAlN coated. Suited for universal.
Specifications
Chip breakerJ
Coating finishTiAlN
Coating processPVD
Corner radius0.0024
Cutting width0.0591
Full radiusNo
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size24R150J06D
Insert size code24R150J06D
Insert stylePENTA
Iso codeISO 13399
Lead angle6
Manufacturers catalog numberPENTA 24R150J06D
Manufacturer gradeIC1008
Material gradeC1; C2; C3; C5; C6
Maximum depth of cut0.1969
Maximum depth of cut range0.1500 to 0.2000
Multi use toolNo
Primary workpiece materialUniversal
StandardsISO 13399
