Iscar

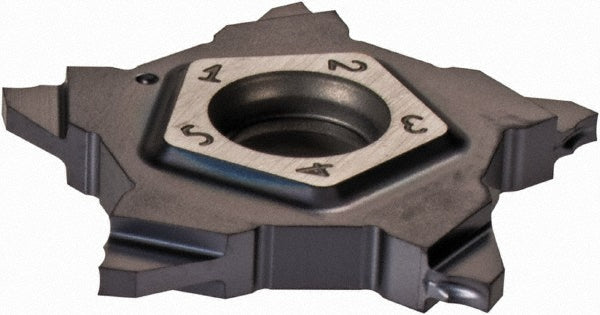

PENTA 24N120J000 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 6003107
MFR# 6003107ISO/ANSI# PENTA 24N120J000Cat# PENTA 24N120J000Series PentaCut
$62.22List $79.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6003107 is a PENTA 24N120J000 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Chip breakerJ
Coating finishTiAlN
Coating processPVD
Cutting width0.0470
Full radiusNo
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert size24N120
Insert size code24N120J000
Insert stylePENTA
Iso codePENTA 24N120J000
Manufacturers catalog numberPENTA 24N120J000
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.0790
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Primary workpiece materialUniversal
StandardsISO 13399
