Iscar

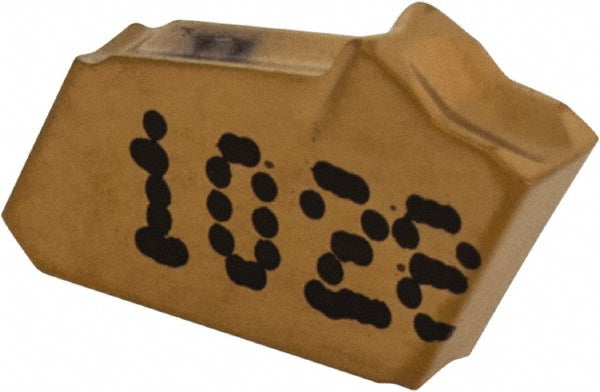

ISO 13399 Solid Carbide Insert, Grade IC1028, TiAlN - Iscar 6003133
MFR# 6003133ISO/ANSI# ISO 13399Series Self-Grip
$14.97List $19.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1028
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6003133 is a ISO 13399 solid carbide indexable insert, grade IC1028, TiAlN coated. Suited for stainless steel, steel.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0063
Cutting tool applicationGrooving; Parting
Cutting width0.0630
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code1.6
Insert styleGFN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC1028
Material gradeC5; C6
Multi use toolYes
Overall width0.0630
Primary workpiece materialStainless Steel; Steel
Relief angle7.00
Single or double endSingle
StandardsISO 13399
