Iscar

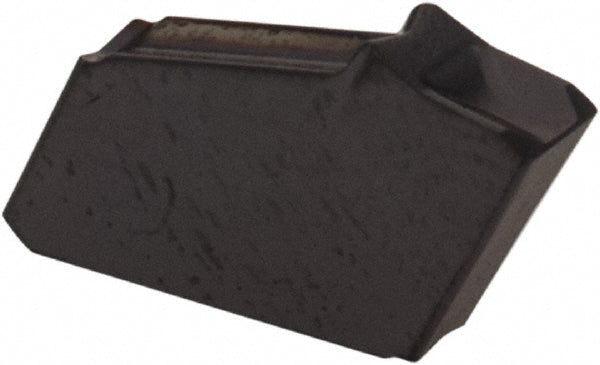

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 6003138
MFR# 6003138ISO/ANSI# ISO 13399Cat# GFN 2Series Self-Grip
$18.17List $23.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6003138 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0060
Cutting tool applicationGrooving; Parting
Cutting width0.0870
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code2
Insert styleGFN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberGFN 2
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Multi use toolYes
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
