Iscar

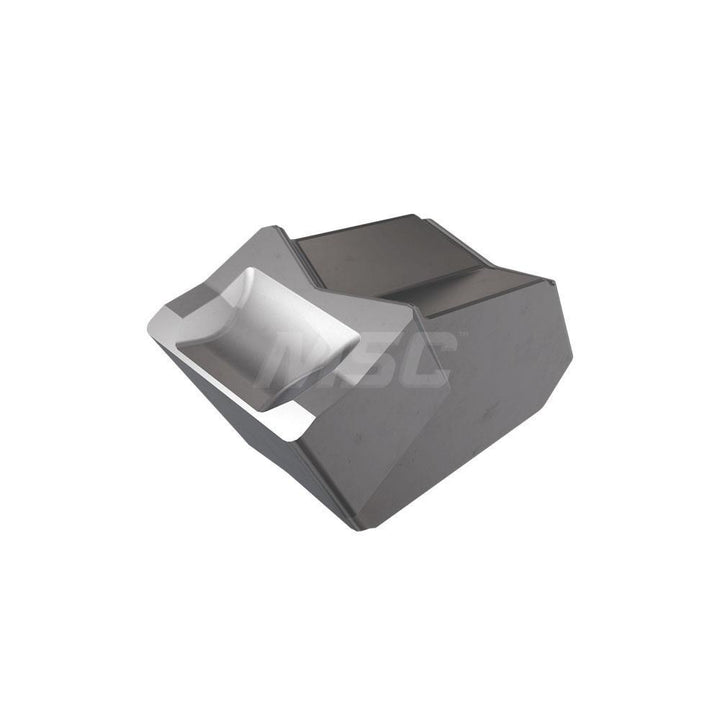

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 6003149
MFR# 6003149ISO/ANSI# ISO 13399Cat# GFN 4BSeries Self-Grip
$20.43List $26.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6003149 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerB
Coating finishCoated
Coating processPVD
Corner radius0.0157
Cutting tool applicationGrooving; Parting
Cutting width0.1614
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size4
Insert size code4
Insert styleGFN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberGFN 4B
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Multi use toolYes
Primary workpiece materialUniversal
Relief angle7.00
Single or double endSingle
StandardsISO 13399
