Iscar

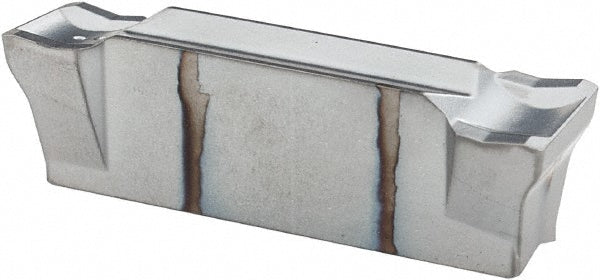

ISO 13399 Solid Carbide Insert, Grade IC328, TiN - Iscar 6003236
MFR# 6003236ISO/ANSI# ISO 13399Cat# DGN 4803CSeries Do-Grip
$34.67List $44.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 6003236 is a ISO 13399 solid carbide indexable insert, grade IC328, TiN coated. Suited for superalloy.
Specifications
ChipbreakerC
Coating finishTiN
Coating processPVD
Corner radius0.0120
Cutting tool applicationGrooving; Parting
Cutting width0.1890
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code4803
Insert styleDGN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberDGN 4803C
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Multi use toolYes
Overall length0.7835
Primary workpiece materialSuperalloy
Single or double endDouble
StandardsISO 13399
Stocking categoryD
