Iscar

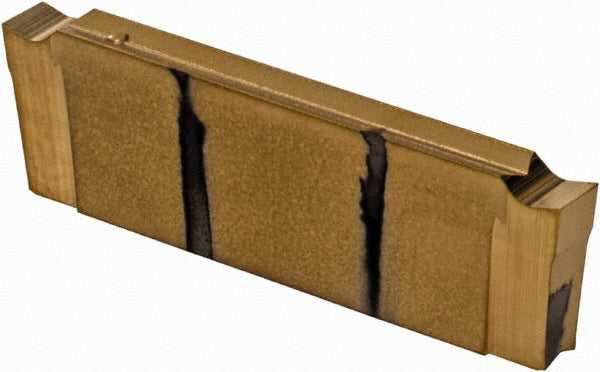

DGN 2000P Solid Carbide Insert, Grade IC508, TiCN - Iscar 6003282
MFR# 6003282ISO/ANSI# DGN 2000PCat# DGN 2000PSeries Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC508
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 6003282 is a DGN 2000P solid carbide indexable insert, grade IC508, TiCN coated. Suited for universal.
Specifications
Chip breakerP
Coating finishTiCN
Coating processPVD
Corner radius0.0020
Cutting width0.0787
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size2000
Insert size code2000P
Insert styleDGN
Iso codeDGN 2000P
Manufacturers catalog numberDGN 2000P
Manufacturer gradeIC508
Material gradeSubmicron
Maximum depth of cut0.7087
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.7874
Primary workpiece materialUniversal
RakePositive
Rake angle7.00
Single or double endDouble
StandardsISO 13399
