Iscar

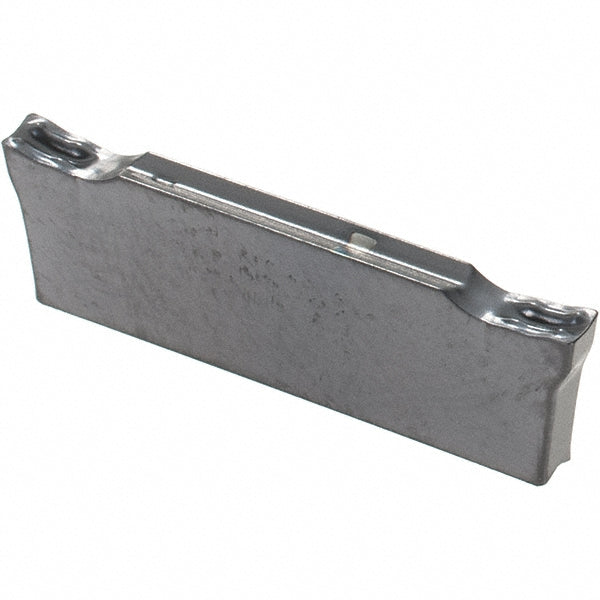

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 6003283
MFR# 6003283ISO/ANSI# ISO 13399Series Do-Grip
$28.11List $36.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6003283 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerZ
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting tool applicationParting
Cutting width0.0787
Insert handRight Hand
Insert materialSolid Carbide
Insert size code2002
Insert styleDGR
Iso codeISO 13399
Lead angle6
Lead angle directionRight Hand
Manufacturer gradeIC908
Maximum depth of cut0.7087
Multi use toolNo
Overall length0.8228
Overall width0.0787
Primary workpiece materialUniversal
Single or double endDouble
StandardsISO 13399
