Iscar

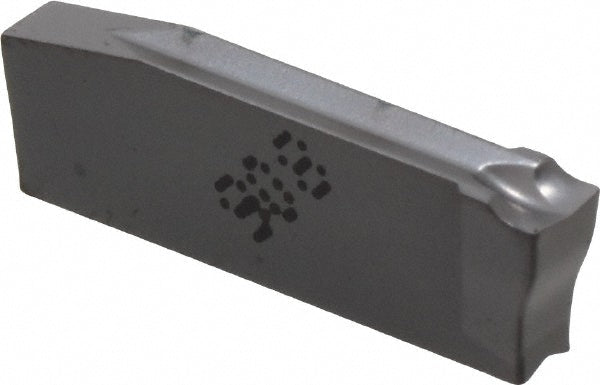

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 6003291
MFR# 6003291ISO/ANSI# ISO 13399Cat# DGNM 3202JSeries Do-Grip
$19.21List $24.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6003291 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerJ
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.1252
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code3202
Insert styleDGN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberDGNM 3202J
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Multi use toolYes
Overall length0.7992
Primary workpiece materialUniversal
Relief angle7.00
Single or double endDouble
StandardsISO 13399
