Iscar

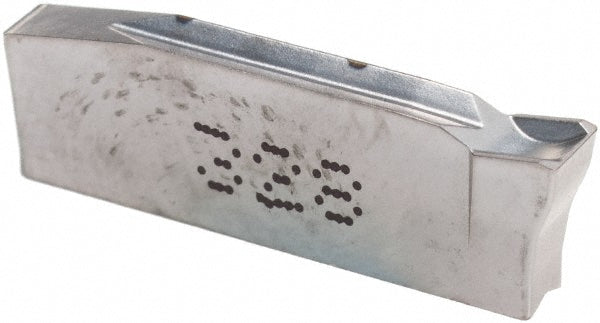

ISO 13399 Solid Carbide Insert, Grade IC328, TiN/TiCN - Iscar 6003292
MFR# 6003292ISO/ANSI# ISO 13399Series Do-Grip
$19.21List $24.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC328
MaterialSolid Carbide
CoatingTiN/TiCN
Description
The Iscar 6003292 is a ISO 13399 solid carbide indexable insert, grade IC328, TiN/TiCN coated. Suited for superalloy.
Specifications
ChipbreakerC
Coating finishTiN/TiCN
Coating processPVD
Corner radius0.0080
Cutting tool applicationGrooving; Parting
Cutting width0.1250
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code3202
Insert styleDGNM
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC328
Material gradeC2; C3; C5; C6
Multi use toolYes
Overall length0.8031
Primary workpiece materialSuperalloy
StandardsISO 13399
Stocking categoryD
