Iscar

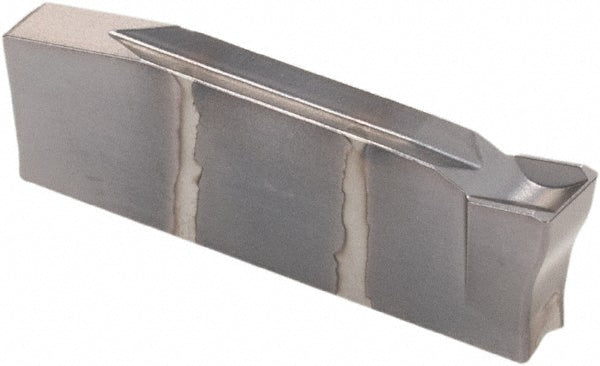

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 6003294
MFR# 6003294ISO/ANSI# ISO 13399Series Do-Grip
$19.21List $24.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6003294 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerC
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting tool applicationGrooving; Parting
Cutting width0.1252
Insert handNeutral
Insert materialSolid Carbide
Insert size code3202
Insert styleDGNM
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Multi use toolYes
Overall length0.8031
Overall width0.1252
Primary workpiece materialUniversal
Single or double endDouble
StandardsISO 13399
