Iscar

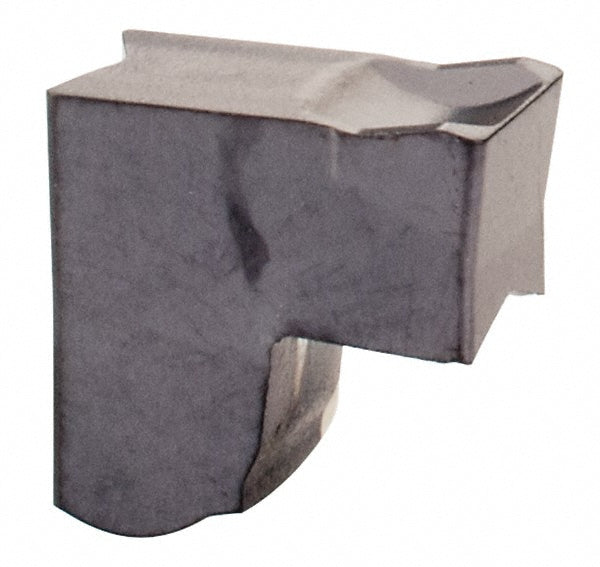

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 6003369
MFR# 6003369ISO/ANSI# ISO 13399Cat# TAG N4CSeries Tang-Grip
$20.43List $26.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6003369 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerC
Coating finishCoated
Coating processPVD
Corner radius0.0094
Cutting tool applicationSlitting
Cutting width0.1575
Insert handNeutral
Insert materialSolid Carbide
Insert size code4
Insert styleTAGN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberTAG N4C
Manufacturer gradeIC908
Material gradeC3
Multi use toolYes
Overall width0.1575
Primary workpiece materialUniversal
Relief angle7.00
StandardsISO 13399
