Iscar

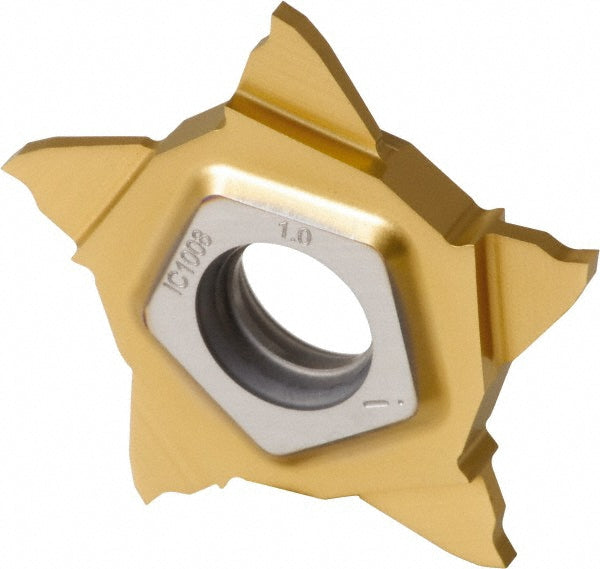

ISO 13399 Solid Carbide Insert, Grade IC1008, TiAlN - Iscar 6003381
MFR# 6003381ISO/ANSI# ISO 13399Cat# PENTA 24N100P005Series PentaCut
$59.96List $76.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1008
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 6003381 is a ISO 13399 solid carbide indexable insert, grade IC1008, TiAlN coated. Suited for universal.
Specifications
ChipbreakerP
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Cutting tool applicationGrooving; Parting
Cutting width0.0394
Full radiusNo
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert size code24N100
Insert stylePENTA
Iso codeISO 13399
Lead angle directionNeutral
Manufacturers catalog numberPENTA 24N100P005
Manufacturer gradeIC1008
Material gradeC1; C2; C3; C5; C6
Maximum depth of cut0.1378
Multi use toolYes
Overall width0.1575
Primary workpiece materialUniversal
Relief angle7.00
StandardsISO 13399
