Iscar

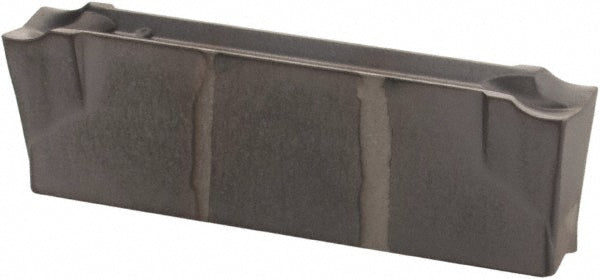

ISO 13399 Solid Carbide Insert, Grade IC907, Coated - Iscar 6003399
MFR# 6003399ISO/ANSI# ISO 13399Cat# DGN 3102JSeries Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC907
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6003399 is a ISO 13399 solid carbide indexable insert, grade IC907, Coated coated. Suited for universal.
Specifications
ChipbreakerJ
Coating finishCoated
Coating processPVD
Corner radius0.0080
Cutting tool applicationGrooving; Parting
Cutting width0.1220
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size2
Insert size code3102
Insert styleDGN
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberDGN 3102J
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.7087
Multi use toolYes
Overall length0.7913
Primary workpiece materialUniversal
Relief angle7.00
Single or double endDouble
StandardsISO 13399
Stocking categoryD
