Iscar

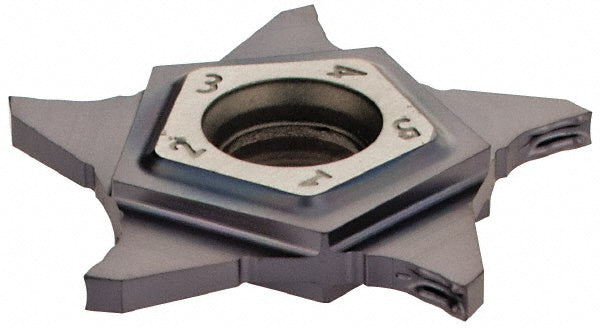

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 6003416
MFR# 6003416ISO/ANSI# ISO 13399Cat# PENTA 24N150Z010Series PentaCut
$62.22List $79.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6003416 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerZ
Coating finishCoated
Coating processPVD
Corner radius0.0040
Cutting tool applicationGrooving; Parting
Cutting width0.0590
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert size code24N150
Insert stylePENTA
Iso codeISO 13399
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberPENTA 24N150Z010
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.1970
Multi use toolYes
Primary workpiece materialUniversal
Relief angle7.00
StandardsISO 13399
Stocking categoryD
