Iscar

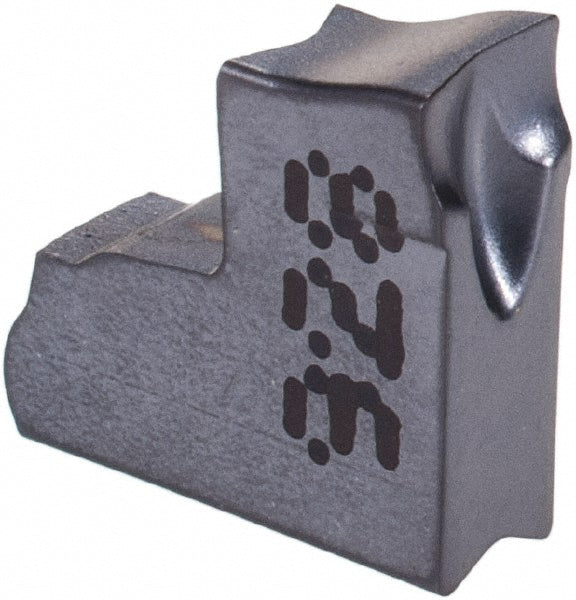

ISO 13399 Solid Carbide Insert, Grade IC928, Coated - Iscar 6003448
MFR# 6003448ISO/ANSI# ISO 13399Cat# TAG R3J-6DSeries Tang-Grip
$18.95List $24.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC928
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6003448 is a ISO 13399 solid carbide indexable insert, grade IC928, Coated coated. Suited for superalloy.
Specifications
ChipbreakerJ
Coating finishCoated
Coating processPVD
Corner radius0.0079
Cutting tool applicationParting
Cutting width0.1180
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code3
Insert styleTAG
Iso codeISO 13399
Lead angle6
Lead angle directionRight Hand
Manufacturers catalog numberTAG R3J-6D
Manufacturer gradeIC928
Material gradeC1; C2; C5; C6
Multi use toolNo
Primary workpiece materialSuperalloy
Relief angle7.00
Single or double endSingle
StandardsISO 13399
Stocking categoryD
