Iscar

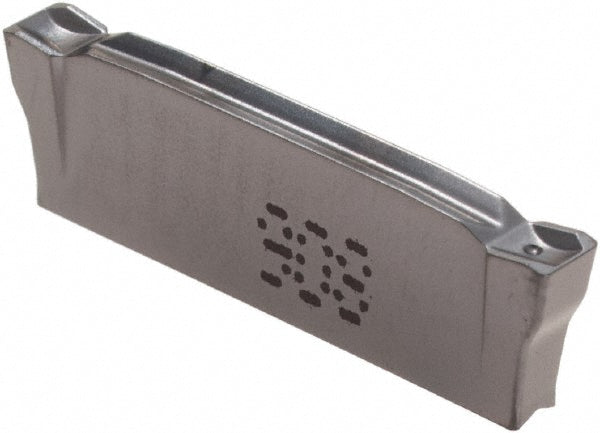

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 6003489
MFR# 6003489ISO/ANSI# ISO 13399Series Do-Grip
$32.17List $41.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 6003489 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerC
Coating finishCoated
Coating processPVD
Corner radius0.0080
Cutting tool applicationGrooving; Parting
Cutting width0.0984
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code2502
Insert styleDGN
Iso codeISO 13399
Lead angle directionNeutral
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.7087
Multi use toolYes
Overall length0.8150
Primary workpiece materialUniversal
Single or double endDouble
StandardsISO 13399
Stocking categoryD
